Fuse box in the engine compartment
► Open the hood.

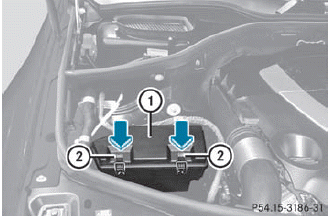

Illustrated: GL 450 (GL 350 BlueTEC, GL 550 are similar)
► Remove any existing moisture from the
fuse box using a dry cloth.
► To open: open clamps 2.
► Fold up cover 1 and remove it towards the
front of the vehicle.
Make sure that no moisture can enter the
fuse box when the cover is open.
► To close: check whether the seal is
lying
correctly in cover 1.
► Insert cover 1 into the retainer at the
rear
of the fuse box.
► Fold down cover 1 and close clamps 2.
The cover must be positioned properly.
Moisture or dirt could otherwise impair the operation of the fuses.
► Close the hood.
