Route guidance active

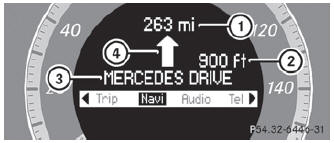

No change of direction announced

  1. Distance to the destination
  2. Distance to the next change of direction
  3. Current road
  4. Symbol for "follow the road's course"

Change of direction announced without a lane recommendation

  1. oad into which the change of direction leads
  2. Distance to change of direction and visual distance display
  3. Symbol for change of direction

When a change of direction has been announced, you will see visual distance display 2 next to the symbol for the change of direction 3. This decreases in size as you approach the announced change of direction.

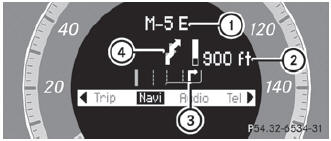

Change of direction announced with a lane recommendation

Lane recommendations are only displayed if the relevant data is available on the digital map.

  1. oad into which the change of direction leads
  2. Distance to change of direction and visual distance display
  3. Lane recommendation
  4. Symbol for change of direction

On multi-lane roads, lane recommendation 3 may be shown for the next change of direction. Lanes may be added during a change of direction.

Lane recommendation display (example)

Lane recommendation display (example)

  1. Uninterrupted lane
  2. New lane during a change of direction
  3. Lane recommended for the change of direction
