High-beam headlamps (halogen headlamps)

Mercedes-Benz M-Class / Mercedes-Benz M-Class Owners Manual / Lights and windshield wipers / Replacing bulbs / Changing the front bulbs / High-beam headlamps (halogen headlamps)

- Switch off the lights.

- Switch off the lights.
- Open the hood.

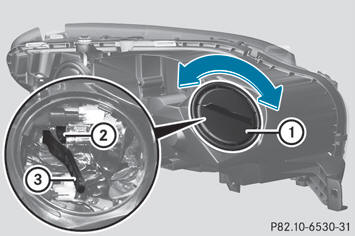

- Turn housing cover 1 counter-clockwise and pull it out.
- Pull lever 3 upwards and remove bulb holder 2.
- Take the bulb out of bulb holder 2.
- Insert the new bulb into bulb holder 2.
- Simultaneously press bulb holder 2 and pull lever 3 downwards.
- Align housing cover 1 and turn it clockwise until it engages.
