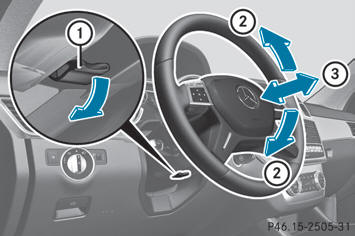

Adjusting the steering wheel manually
1 Release lever
2 To adjust the steering wheel height
3 To adjust the steering wheel position (fore-and-aft adjustment)
- Push release lever 1 down completely.
The steering column is unlocked.
- Adjust the steering wheel to the desired
position.
- Push release lever 1 up completely.
The steering column is locked.
- Check if the steering column is locked.
When doing so, try to push the steering
wheel up or down or try to move it in the
fore-and-aft direction.
