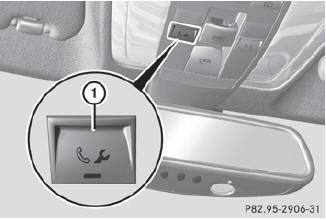

Roadside Assistance button

Press and hold Roadside Assistance
button 1 for more than two seconds. This initiates a call to the Mercedes-Benz
Customer Assistance Center. The indicator lamp in Roadside Assistance button 1 flashes while the call is active. The
Connecting Call message appears in the
multifunction display. The audio output is
muted.
If a connection can be established, the Call Connected message appears in the multifunction display.
If a cellular phone network is available and
there is sufficient GPS reception, the mbrace
system transmits data to the Mercedes-Benz
Customer Assistance Center, for example:
• current location of the vehicle
• vehicle identification number
The display of the audio system
or
COMAND shows that an mbrace call is
active. During the call, you can change to
the navigation menu by pressing the NAVI
button on COMAND, for example.
Voice output is not available.
A voice connection is established between the Mercedes-Benz Customer Assistance Center and the vehicle occupants.
Describe the type of assistance
needed.
The Mercedes-Benz Customer Assistance Center either sends a qualified Mercedes- Benz technician or organizes for your vehicle to be transported to the nearest authorized Mercedes-Benz Center. You may be charged for services such as repair work and/or towing. Further details are available in your mbrace manual.
The mbrace system failed to
initiate a
Roadside Assistance call if:
• the indicator lamp in Roadside
Assistance button 1 is flashing
continuously.
• no voice connection to the Mercedes-
Benz Customer Assistance Center was
established.
This may be because the corresponding
mobile phone network is not available.
The Call Failed message appears in the
multifunction display.
To end a call: press the
button on the
multifunction steering wheel.
or
Press the corresponding button for
ending
a phone call on the audio system or on
COMAND.
