Ashtray in the front-compartment center console
You can remove the ashtray
insert and
use the resulting compartment for
stowage.
The stowage space under the
ashtray is
not heat resistant. Before placing lit
cigarettes in the ashtray, make sure that
the ashtray is properly engaged. Otherwise,
the stowage space could be damaged.

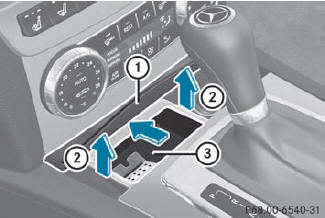

To open: slide cover 1
forwards until it
engages.
To remove insert: hold
insert 3 by the
ribbing at the sides and lift it up 2 and out.
To re-install the insert:
press insert 3
into the holder until it engages.
To close: press cover 1
briefly at the
front.
The cover moves back.
