Stowage well under the trunk floor

The TIREFIT kit, the vehicle tool kit, etc. are located in the stowage compartment.

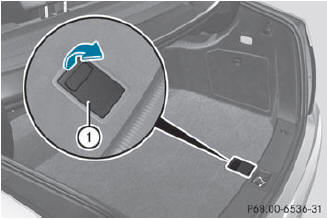

To open: pull handle 1

upwards. To open: pull handle 1 upwards.

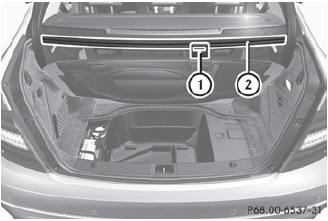

Hook handle 1 into rain trough

2. Hook handle 1 into rain trough 2.

before Unhook the handle before again before closing the trunk lid and clip it in securely to prevent the handle flap from protruding.
Otherwise, you could damage the handle.
