Releasing the parking lock manually
In the event of an electrical malfunction, it is possible to release the selector lever lock manually to move it out of position P, e.g. if you wish to tow the vehicle away.
Do not use any sharp-edged
objects to
remove the selector lever gaiter from the
center console. This could damage the
selector lever gaiter.
Apply the parking brake.

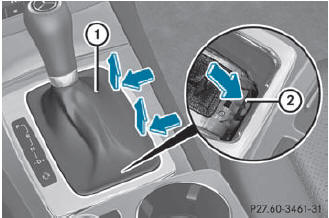

Pry off selector lever gaiter 1
with a flat,
blunt object, (e.g. a screwdriver wrapped in
cloth) from the right-hand edge, pulling it
up and out.
Press release buttons 2 down and
simultaneously move the selector lever out
of position P.
The selector lever can now be moved freely
until it is returned to position P.
