Setting the rear-compartment air vents

Setting the center vents in the rear compartment

Setting the center vents in the rear compartment
Setting the center vents in the rear compartment

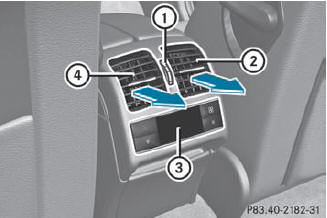

1 Rear-compartment air vent thumbwheel
2 Rear-compartment air vent, right
3 Rear control panel for automatic climate control
4 Rear-compartment air vent, left

thumbwheel 1 up or down. To open/close: turn thumbwheel 1 up or down.
