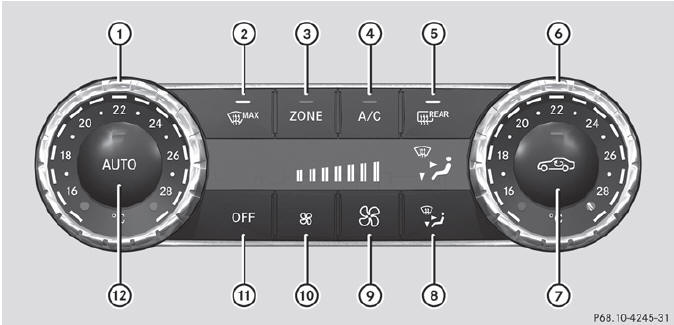

Control panel for dual-zone automatic climate control

Control panel for dual-zone automatic climate control
Control panel for dual-zone automatic climate control

Canada only

1 To set the temperature, left.
2 To defrost the windshield.
3 To switch the ZONE function on/off.
4 To activate/deactivate cooling with air dehumidification.
5 To switch the rear window defroster on/off.
6 To set the temperature, right.
7 To activate/deactivate air-recirculation mode.
8 To set the air distribution.
9 To increase the airflow.
10 To reduce the airflow.
11 To switch climate control on/off.
12 To set climate control to automatic

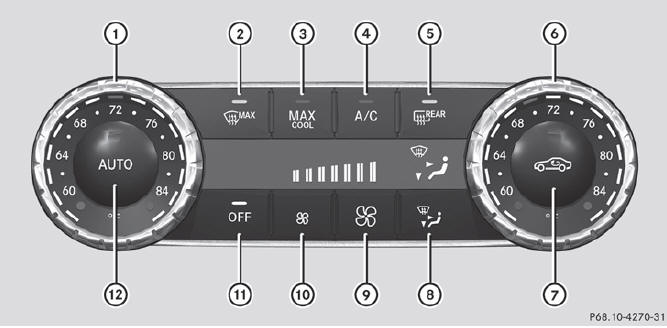

Control panel for dual-zone automatic climate control
Control panel for dual-zone automatic climate control

USA only

1 To set the temperature, left.
2 To defrost the windshield.
3 To switch maximum cooling MAX COOL on/off.
4 To activate/deactivate cooling with air dehumidification.
5 To switch the rear window defroster on/off.
6 To set the temperature, right.
7 To activate/deactivate air-recirculation mode.
8 To set the air distribution.
9 To increase the airflow.
10 To reduce the airflow.
11 To switch climate control on/off.
12 To set climate control to automatic.
