Parking lamps/standing lamps (halogen headlamps)
Parking lamps/standing lamps (halogen headlamps)
Switch off the lights.
Open the hood.

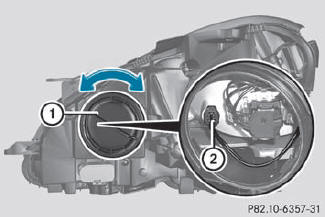

Turn housing cover 1
counter-clockwise and pull it out.
Pull out bulb holder 2.
Take the bulb out of bulb holder
2.
Insert the new bulb into bulb
holder 2.
Insert bulb holder 2.
Align housing cover 1 and turn it
clockwise until it engages.
