Overview: changing bulbs/bulb types
You can change the following bulbs. The bulb type can be found in the legend.

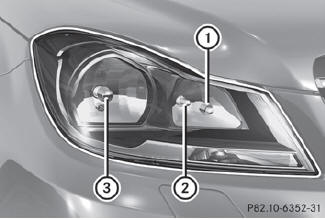

Halogen headlamps
1 Parking lamp/standing lamp: W 5 W
2 High-beam headlamp: H7 55 W
3 Low-beam headlamp: H7 55 W

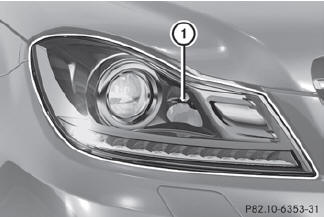

Bi-Xenon headlamps
1 Cornering lamp: H7 55 W

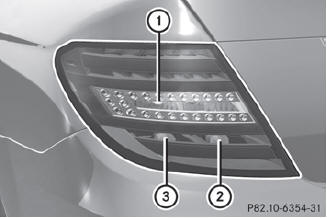

Tail lamp
1 Backup lamp: P 21 W
2 Brake lamp: P 21 W
3 Brake lamp/tail lamp: P 21 W
