Turn signals
Turn signals

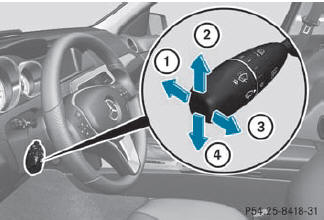

1 High-beam headlamps
2 Right turn signal
3 High-beam flasher
4 Left turn signal
To indicate briefly:
press the combination
switch briefly to the pressure point in the
direction of arrow 2 or 4.
The corresponding turn signal flashes three
times.
To indicate: press the
combination switch
beyond the pressure point in the direction
of arrow 2 or 4.
See also:
SmartKey
0 To remove the SmartKey
1 Power supply for some consumers, such
as the windshield wipers
2 Ignition (power supply for all consumers)
and drive position
3 To start the engine
The Smar ...
Switching the rear window wiper on/ off
Combination switch
Switch
To wipe with washer fluid
To switch on intermittent wiping
To switch off intermittent wiping
To wipe with washer fluid
Turn the SmartKey to position ...
Monitoring range of the sensors
Blind Spot Assist monitors the area shown in
the figure up to 10 ft (3 m) behind and
immediately adjacent to your vehicle.
WARNING
Blind Spot Assist monitors certain areas in the
im ...
