Setting and storing the parking position
You can position the front-passenger side exterior mirror in such a way that you can see the rear wheel on that side as soon as you engage reverse gear. You can store this position.
Make sure that the vehicle is
stationary and
that the SmartKey is in position 2 in the
ignition lock.

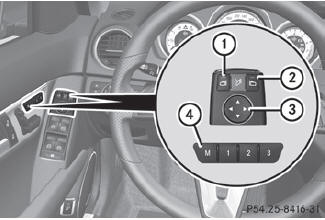

Press button 2 for the exterior
mirror on
the front-passenger side.
Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parking position.
Use adjustment button 3 to adjust
the
exterior mirror to a position that allows you
to see the rear wheel and the curb. The parking position is stored.
If you shift the transmission to
another
position, the exterior mirror on the frontpassenger
side returns to the driving
position.
You can also store the parking
position
using memory button M 4.
Make sure that the SmartKey is in
position 2 in the ignition lock.
With the exterior mirror on the
frontpassenger
side activated, use
adjustment button 3 to adjust the
exterior mirror to a position which
allows you to see the rear wheel and
the curb.
Press memory button M 4 and
one of
the arrows on adjustment button 3
within three seconds.
The parking position is stored if the
exterior mirror does not move.
If the mirror moves out of position, repeat the steps.
