Adjusting the steering wheel manually

Adjusting the steering wheel manually
Adjusting the steering wheel manually

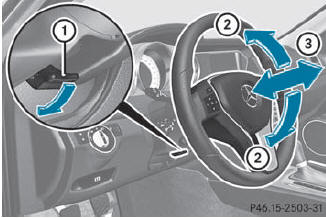

1 Release lever
2 To adjust the steering wheel height
3 To adjust the steering wheel position (fore-and-aft adjustment)

completely. The steering column is unlocked. Push release lever 1 down completely. The steering column is unlocked.
desired position. Adjust the steering wheel to the desired position.
The steering column is locked. Push release lever 1 up completely. The steering column is locked.
locked. When doing so, try to push the steering wheel up or down or try to move Check if the steering column is locked. When doing so, try to push the steering wheel up or down or try to move it in the fore-and-aft direction.
