Adjusting the seats electrically
Vehicles without Memory
function: the
seats can be adjusted within three minutes
of a front door being opened.
The time period starts over again if, within these three minutes, you:
• open or close a front door
• insert the SmartKey into the ignition lock or remove it from the ignition
lock
• switch the ignition on or off
If the SmartKey is in position 2 in the ignition lock, the seats can be adjusted at any time.
Depending on the equipment, the seat adjustment buttons are either located on the side of the seat or on the door control panel.

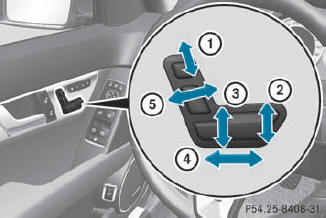

1 Head restraint height
2 Seat cushion angle
3 Seat height
4 Seat fore-and-aft adjustment
5 Backrest angle

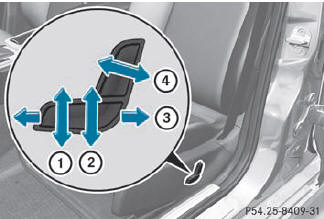

1 Seat cushion angle
2 Seat height
3 Seat fore-and-aft adjustment
4 Backrest angle
You can store the seat settings
using the
memory function
AMG vehicles are equipped with a
seat
featuring an integrated head restraint and
the head restraint adjustment button is
deactivated. It is therefore not possible to
set the height and angle of the head
restraint.
