Unlocking the trunk (mechanical key
The trunk lid swings upwards
when
opened. Therefore, make sure that there is
sufficient clearance above the trunk lid.
If the trunk cannot be unlocked with the SmartKey or KEYLESS-GO, use the mechanical key.
If you use the mechanical key to unlock and open the trunk lid, the anti-theft alarm system will be triggered.
Take the mechanical key out of
the SmartKey.

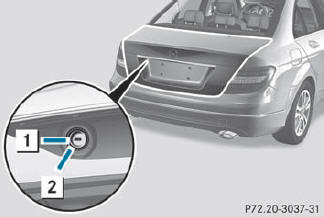

Insert the mechanical key into the
trunk lid lock as far as the stop.

Turn the mechanical key
counter-clockwise from position 1 as far as it will go to position 2.
The trunk is unlocked.
Turn the mechanical key back to
position 1 and remove it.
Insert the mechanical key into the
SmartKey.
See also:
Problems with the windshield wipers
The windshield wipers are obstructed
Leaves or snow, for example, may be
obstructing the windshield wiper movement.
The wiper motor has been deactivated.
•► For safety reasons, you should r ...
Activating/deactivating
Turn the SmartKey to position 2 in the ignition lock.
To switch on: press the button.
The indicator lamp in the button
lights up. Airflow and air distribution are set to automatic mode.
...
Ashtray in the rear-compartment center console
Ashtray in the rear-compartment center console
To open: pull cover 2 out
by its top edge.
To remove the insert: press
release
button 3 and lift the insert up and out.
To install the inse ...
