"Minispare" emergency spare wheel

The "Minispare" emergency spare wheel can be found in the stowage well under the trunk floor.

– Lift the trunk floor up.

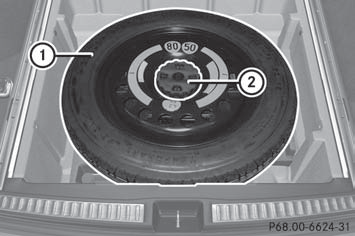

Example: vehicles without lockable trunk floor
Example: vehicles without lockable trunk floor

– Vehicles with trailer tow hitch: remove the ball coupling stowage tray.
– Turn emergency spare wheel retainer 2 counterclockwise and remove it.
– Remove "Minispare" emergency spare wheel 1.

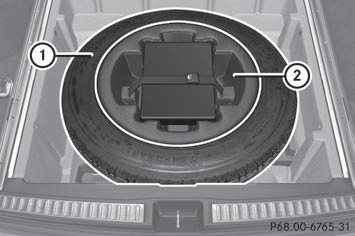

Vehicles with lockable trunk floor
Vehicles with lockable trunk floor

– Remove the contents of stowage tray 2.
– Turn the central retaining screw in stowage tray 2 and "Minispare" emergency spare wheel 1 counterclockwise and remove it.
– Remove stowage well 2.
– Vehicles with trailer tow hitch: remove the ball coupling stowage tray.<>    – Remove "Minispare" emergency spare wheel 1.
