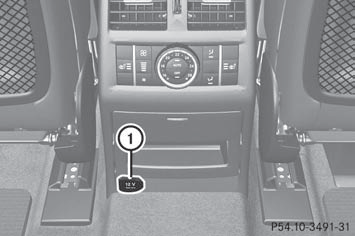

Socket in the rear-compartment center console
– Lift up the cover of socket 1.
Vehicles with the Rear Seat Entertainment System have two sockets in the center console in the rear compartment.
