Temperature-controlled cup holder in the front-compartment center console
WARNING
When you use the warming function, the metal
insert of the cup holder is heated. Therefore,
do not touch the cup holder insert. Otherwise,
you might burn yourself.
The temperature-controlled cup holder can be used to keep cold drinks cool and warm drinks warm.
You can remove the cup holder's rubber mat for cleaning. Clean with clear, lukewarm water only.

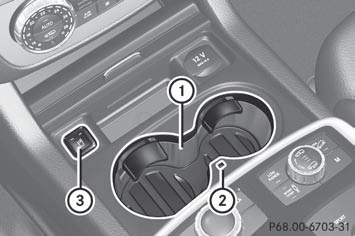

1 Cup holders
2 Residual heat indicator lamp
3 Switch
– Turn the SmartKey to position 2 in the
ignition lock.
– To switch on cooling function: press
switch 3 repeatedly until the blue
indicator lamp in the switch lights up.
– To switch on warming function: press
switch 3 repeatedly until the red indicator
lamp in the switch lights up.
– To switch off function: press switch 3
repeatedly until the indicator lamp in the
switch goes out.
When using the warming function above a certain temperature, residual heat indicator lamp 2 lights up. This means that the metal insert of the cup holder is hot.
