Route guidance active

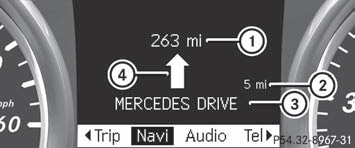

No change of direction announced
1 Distance to the destination
2 Distance to the next change of direction
3 Current road
4 Symbol for "follow the road's course"

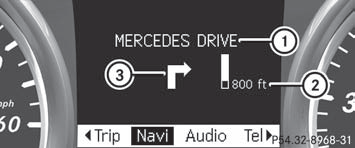

Change of direction announced without a lane recommendation
1 Road into which the change of direction
leads
2 Distance to change of direction and visual
distance display
3 Symbol for change of direction
When a change of direction has been announced, you will see visual distance display 2 next to the symbol for the change of direction 3. This decreases in size as you approach the announced change of direction.

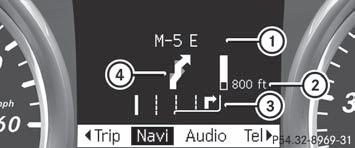

Change of direction announced with a lane recommendation
Lane recommendations are only displayed if the relevant data is available on the digital map.
1 Road into which the change of direction
leads
2 Distance to change of direction and visual
distance display
3 Lane recommendation
4 Symbol for change of direction

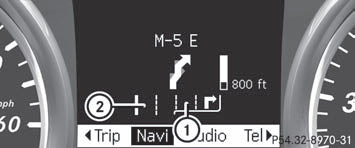

On multi-lane roads, lane recommendation 3 may be shown for the next change of direction. Lanes may be added during a change of direction.
1 New lane during a change of direction
2 Uninterrupted lane
