Opening and closing

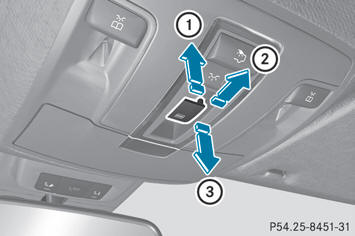

Overhead control panel
1 To raise
2 To open
3 To close/lower
The panorama roof with power tilt/sliding
panel can only be operated when the roller
sunblind is open.
- Turn the SmartKey to position 1 or 2 in the
ignition lock.
- Push or pull the
switch in the
corresponding direction.
If you press the
switch beyond the
point of resistance, an automatic opening/closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
When raising the roof, automatic operation
is only available if the sliding sunroof is in
the closed position.
