Override feature for the rear side windows
WARNING
When children ride on the vehicle's rear seats,
activate the override switch. Otherwise, the
children could be injured, e.g. by trapping
themselves in the rear side window.

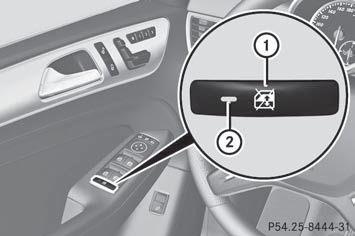

- To activate/deactivate: press button 1.
If indicator lamp 2 is lit, operation of the rear side windows is deactivated.
Operation is only possible using the switches in the driver's door. If indicator lamp 2 is off, operation is possible using the switches in the rear compartment.
See also:
Changing the battery
You require a CR 2025 3 V cell battery.
- Take the mechanical key out of the
SmartKey.
- Press mechanical key 2 into the opening
in the SmartKey in the direction of the
arrow until battery t ...
Opening and closing
Overhead control panel
1 To raise
2 To open
3 To close
- Turn the SmartKey to position 1 or 2 in the
ignition lock.
- Press or pull the
switch in the
corresponding direction.
If you ...
Installing/removing the combined
cargo cover and net
You can reach the combined cargo cover and
net to install and remove it from the cargo
compartment and, with the seat backrest
folded forwards, from the left-hand rear door.
•► Make sure ...
