Tire labeling overview

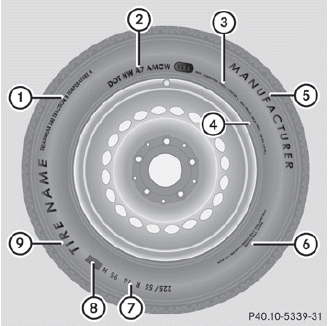

The following markings are on the tire in addition to the tire name (sales designation) and the manufacturer's name:

1 Uniform Tire Quality Grading Standard

1 Uniform Tire Quality Grading Standard
2 DOT, Tire Identification Number
3 Maximum tire load
4 Maximum tire pressure
5 Manufacturer
6 Tire material
7 Tire size designation, load-bearing capacity and speed index
8 Load index
9 Tire name

deviate from the data in the example. Tire data is vehicle-specific and may deviate from the data in the example.
