Vehicles with a TIREFIT kit

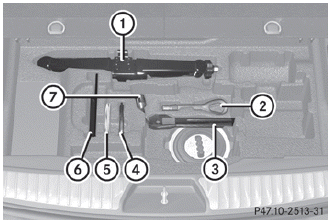

Lift the cargo compartment floor up.

1 Jack

1 Jack
2 Towing eye
3 Ratchet wrench
4 Alignment bolt
5 Fuse allocation chart
6 Folding wheel chock
7 Lug wrench
