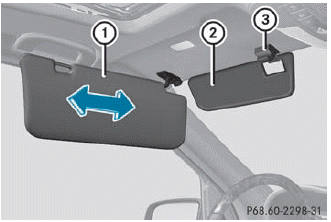

Glare from the side
► Fold down sun visor 1.
► Pull sun visor 1 out of retainer 3.
► Swing sun visor 1 to the side.
► Vehicles with a sliding sunroof: slide sun
visor 1 horizontally as desired.
► Vehicles with a sliding sunroof: fold
down additional sun visor 2 to the
windshield.
