Center console

Center console
Center console

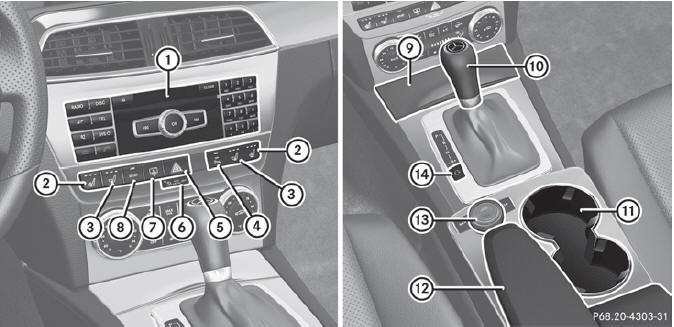

Function

1 Audio system/COMAND; see the separate operating instructions
2 3 Seat ventilation Seat heating
3 4 PARKTRONIC (Canada only) Seat ventilation
4 5 Hazard warning lamps PARKTRONIC (Canada only)
5 6 Indicator lamp Hazard warning lamps
6 7 Rear window roller sunblind Indicator lamp
7 8 Dynamic driving package with Rear window roller sunblind
8 sports mode Dynamic driving package with sports mode
9 Stowage compartment
Ashtray
Cigarette lighter
Power socket
10 Selector lever
11 Cup holder
12 Stowage compartment
13 Audio/COMAND controller
14 Selects the drive program
