Cockpit

Cockpit
Cockpit

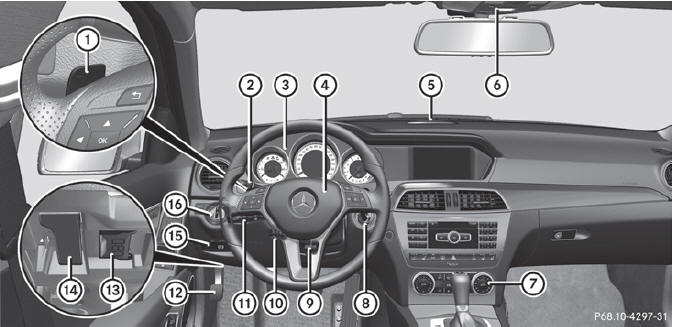

Function

1 Steering wheel paddle shifters
2 Cruise control lever
3 Instrument cluster
4 Horn
5 PARKTRONIC warning display (Canada only)
6 Overhead control panel
7 Climate control systems
8 Ignition lock
Start/Stop button
9 Adjusts the steering wheel manually
10 Adjusts the steering wheel electrically
11 Combination switch<> 12 Parking brake
13 On-board diagnostic interface
14 Opens the hood
15 Releases the parking brake
16 Light switch
