High-beam headlamps
► Switch off the lights.
► Open the hood.

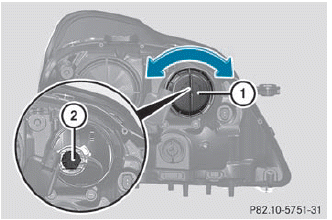

► Turn housing cover 1
counter-clockwise
and pull it out.
► Turn bulb holder 2
counter-clockwise and
pull it out.
► Take the bulb out of bulb holder
2.
► Insert the new bulb into bulb holder
2.
► Insert bulb holder 2
into the lamp and turn
it clockwise.
► Align housing cover 1
and turn it
clockwise until it engages.
