Overview: changing bulbs/bulb types
You can change the following bulbs. The bulb type can be found in the legend.

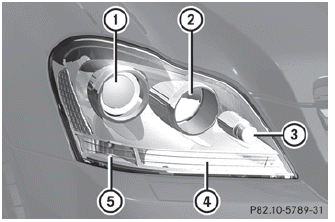

Halogen headlamps
1 Low-beam headlamp: H7 55 W
2 High-beam headlamp: H7 55 W
3 Parking lamp/standing lamp: W 5 W
4 Turn signal lamp: 3457A
5 Side marker lamp: WY 5 W

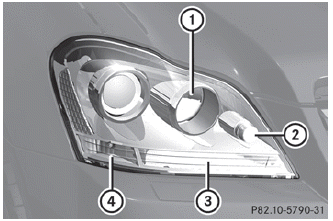

Bi-Xenon headlamps
1 High-beam headlamp: H7 55 W
2 Parking lamp/standing lamp: W 5 W
3 Turn signal lamp: 3457A
4 Side marker lamp: WY 5 W

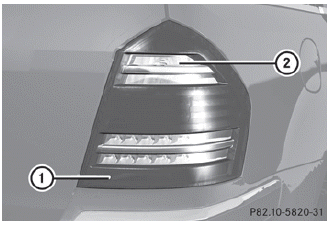

Tail lamps with LEDs
1 Rear fog lamp: H 21 W (driver's side only)
2 Backup lamp: P 21 W

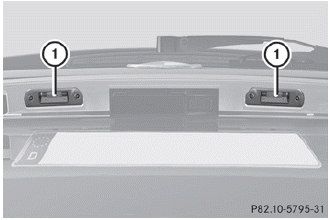

License plate lamp
1 License plate lamp: C 5 W
