Adjusting the steering wheelmanually
This function is only available in vehicles in the USA.

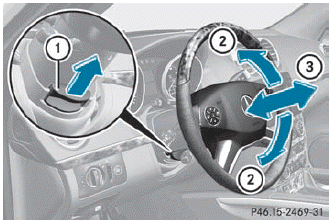

1 Release handle
2 To adjust the steering wheel height
3 To adjust the steering wheel position
(fore-and-aft adjustment)
► Pull release handle : out completely.
The steering column is unlocked.
► Adjust the steering wheel to the desired
position.
► Push release handle : in completely until
it engages fully.
The steering column is locked.
► Check if the steering column is locked.
When doing so, try to push the steering wheel up or down or try to move it in the fore-and-aft direction.
