Dashboard fuse box
There is a fuse box located on both the driver's side and the front-passenger side.
Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.

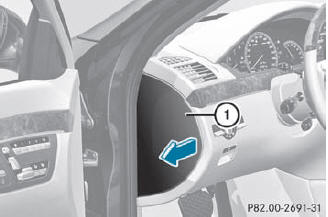

Driver's side illustrated
To open: pull cover 1 outwards in the
direction of the arrow and remove it.
To close: clip in cover 1 on the front of
the dashboard.
Fold cover 1 inwards until it engages.
