DISTRONIC PLUS displays in the multifunction display

General notes

You can select the distance display in the Assistance menu  of the onboard computer.

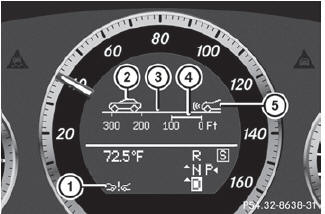

Display when DISTRONIC PLUS is deactivated

•► Select the Distance Display function using the on-board computer

When DISTRONIC PLUS is deactivated, you will see the following in the multifunction display:

1. Symbol for activated PRE-SAFE® Brake

1. Symbol for activated PRE-SAFE® Brake
2. Vehicle in front, if detected
3. Distance indicator, current distance to the vehicle in front
4. Specified minimum distance to the vehicle in front; adjustable
5. Own vehicle

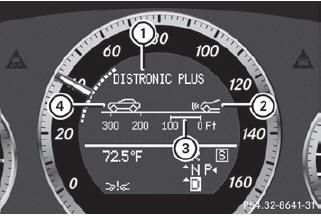

Display when DISTRONIC PLUS is activated

Select the Distance Display function using the on-board computer

You will see the stored speed for about five seconds when you activate DISTRONIC PLUS.

After this time, you will see the following in the multifunction display while DISTRONIC PLUS is activated:

1. DISTRONIC PLUS activated

1. DISTRONIC PLUS activated
2. Own vehicle
3. Specified minimum distance to the vehicle in front; adjustable
4. Vehicle in front, if detected
