Fuel filler flap

The fuel filler flap is unlocked or locked automatically when you open or close the vehicle with the SmartKey or using KEYLESSGO.

The position of the fuel filler cap is displayed in the instrument cluster arrow. The arrow next to the filling pump indicates the side of the vehicle.

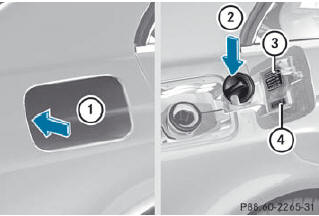

Example: Sedan

Example: Sedan

1. To open the fuel filler flap
2. To insert the fuel filler cap
3. Tire pressure table
4. Fuel type
