Setting the rear-compartment air vents

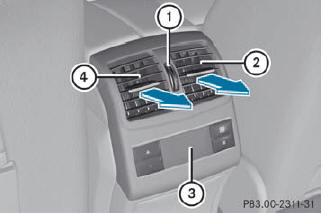

Setting the center vents in the rear compartment

1. Rear-compartment air vent thumbwheel

1. Rear-compartment air vent thumbwheel
2. Rear-compartment air vent, right
3. Rear control panel for automatic climate control
4. Rear-compartment air vent, left

•► To open/close: turn thumbwheel 1 up or down.

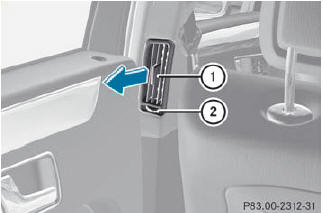

Setting the B-pillar air vents

1. B-pillar air vent

1. B-pillar air vent 2. Thumbwheel for B-pillar air vent

•► To open/close: turn thumbwheel 2 to the left or right.
