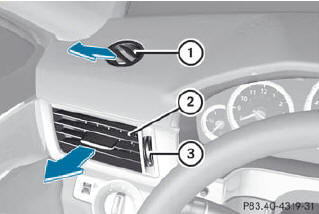

Setting the side air vents
•► To open/close: turn thumbwheel 3 up or down.
Side window defroster vent 1 is never completely shut, even if side air vent 2 is shut.
