Control panel for dual-zone automatic climate control

Canada only

Canada only

1. To activate/deactivate air-recirculation mode
2. To defrost the windshield
3. To switch the ZONE function on/off
4. Display
5. To set climate control to automatic
6. To activate/deactivate cooling with air dehumidification
7. To switch the rear window defroster on/off
8. To switch climate control on/off
9. To set the temperature, right
10. To set the air distribution
11. To set the airflow
12. To set the temperature, left

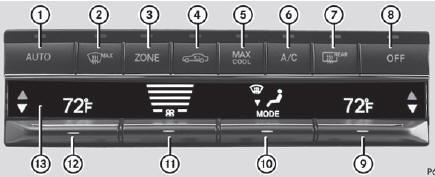

USA only

USA only

1. To set climate control to automatic
2. To defrost the windshield
3. To switch the ZONE function on/off
4. To activate/deactivate air-recirculation mode
5. To switch maximum cooling MAX COOL on/off
6. To activate/deactivate cooling with air dehumidification
7. To switch the rear window defroster on/off
8. To switch climate control on/off
9. To set the temperature, right
10. To set the air distribution
11. To set the airflow
12. To set the temperature, left
13. Display
