Turn signal lamp (halogen headlamps)

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Lights and windshield wipers / Replacing bulbs / Changing the front bulbs / Turn signal lamp (halogen headlamps)

Due to their location, have the bulbs in the

Due to their location, have the bulbs in the left-hand headlamp changed at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center.

•► Switch off the lights.

•► Open the hood.

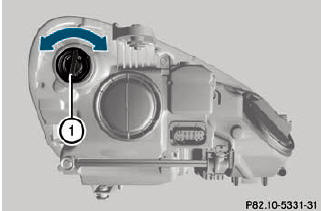

•► Turn bulb holder 1 counter-clockwise and pull it out.

•► Turn the bulb counter-clockwise, applying slight pressure, and remove it from bulb holder 1.

•► Insert the new bulb into bulb holder 1 and turn it clockwise.

•► Insert bulb holder 1 into the lamp and turn it clockwise.
