Parking lamps/standing lamps (halogen headlamps)

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Lights and windshield wipers / Replacing bulbs / Changing the front bulbs / Parking lamps/standing lamps (halogen headlamps)

•► Switch off the lights.

•► Switch off the lights.

•► Open the hood.

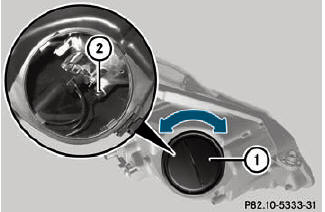

•► Turn housing cover 1 counter-clockwise and pull it out.

•► Pull out bulb holder 2.

•► Take the bulb out of bulb holder 2.

http://strategic-human-resource.com/

•► Insert the new bulb into bulb holder 2.

•► Insert bulb holder 2.

•► Align housing cover 1 and turn it clockwise until it engages.
