High-beam headlamps (halogen headlamps)/cornering lamps (Bi-Xenon headlamps)

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Lights and windshield wipers / Replacing bulbs / Changing the front bulbs / High-beam headlamps (halogen headlamps)/cornering lamps (Bi-Xenon headlamps)

•► Switch off the lights.

•► Switch off the lights.

•► Open the hood.

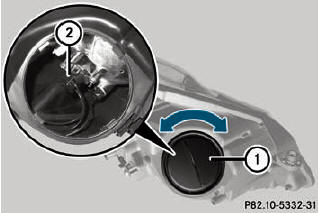

•► Turn housing cover 1 counter-clockwise and pull it out.

•► Turn bulb holder 2 counter-clockwise and pull it out.

•► Take the bulb out of bulb holder 2;.

•► Insert the new bulb into bulb holder 2.

•► Insert bulb holder 2 into the lamp and turn it clockwise.

•► Align housing cover 1 and turn it clockwise until it engages.
