Overview: changing bulbs/bulb types
You can change the following bulbs. The bulb type can be found in the legend

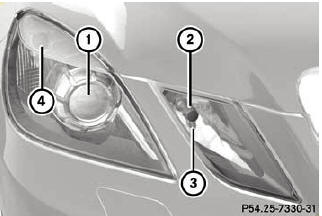

Halogen headlamps
1. Low-beam headlamps: H7 55
2. High-beam headlamp: H7 55 W
3. Parking lamp/standing lamp: W 5 W
4. Turn signal lamp: 3457A
Bi-Xenon headlamps 1 Cornering lamp: H7 55 W 2 Infrared light (Night View Assist Plus): H11 55 W
