Folding back the folding bench seat

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Seats, steering wheel and mirrors / Seats / Folding bench seat in the cargo compartment (Wagon) / Folding back the folding bench seat

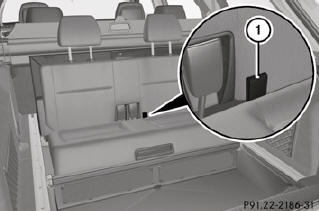

•► Pull the seat cushion upwards by tab 1

•► Pull the seat cushion upwards by tab 1 and fold it back into its original position until it engages.

•► Press release button 1 and fold the head

•► Press release button 1 and fold the head restraints down.

In order to avoid causing damage, push the head restraints completely into their guides and click the seat belt buckles into their guides.

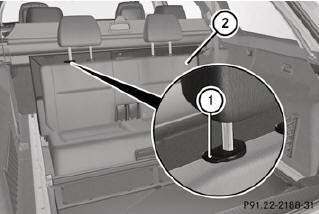

•► Press release catch 1 and push the head

•► Press release catch 1 and push the head restraints in fully.

•► Fold backrest 2 of the folding bench seat into its original position until it engages.
