installing and removing the seat cushion

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Seats, steering wheel and mirrors / Seats / Folding bench seat in the cargo compartment (Wagon) / installing and removing the seat cushion

You must remove the seat cushion if you wish to lift the trunk floor, e.g. if the vehicle has a flat tire.

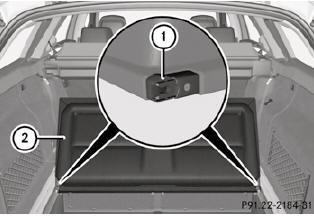

•► To remove: fold seat cushion 2 upwards

•► To remove: fold seat cushion 2 upwards and remove it from seat cushion guides 1.

•► To install: guide seat cushion 2 into seat

•► To install: guide seat cushion 2 into seat cushion guides 1 at a slight angle from the rear 3.

•► Fold seat cushion 2 back into its original position 4 until it engages.
