Folding out the folding bench seat

Mercedes-Benz E-Class / Mercedes-Benz E-Class Sedan and Wagon Owners Manual / Seats, steering wheel and mirrors / Seats / Folding bench seat in the cargo compartment (Wagon) / Folding out the folding bench seat

•► Make sure that the backrests of the rear

•► Make sure that the backrests of the rear bench seat are locked in the upright position.

•► Move the handle for the combined cargo cover and net upwards.

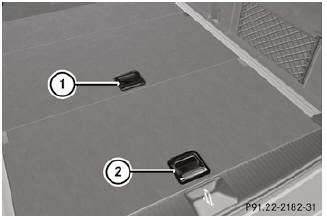

•► Pull release handle 1 and fold the backrest of the folding bench seat upwards.

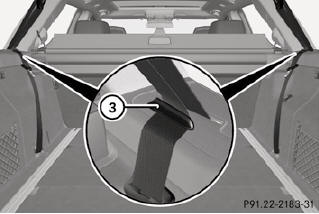

•► Hook the seat belts into retainers 3.

•► Hook the seat belts into retainers 3.

•► Pull release handle 2 and fold the folding bench seat cushion into the sitting position.

•► Push down the seat cushion until the backrest engages fully.

•► Fold the head restraints upwards.
