Opening and closing

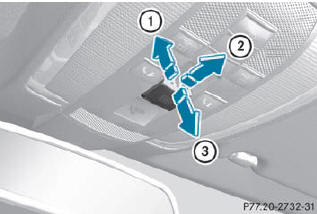

Overhead control panel
1. To raise
2. To open
3. To close/lower
The panorama roof with power tilt/sliding panel can only be operated when the roller sunblind is open.
•► Turn the SmartKey to position 1 or 2 in the ignition lock.
•► Push or pull the
switch in the
corresponding direction.
If you press the
switch beyond
the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
