Locking the trunk separately (Sedan)
You can lock the trunk separately. If you then unlock the vehicle centrally, the trunk remains locked and cannot be opened.
•► Close the trunk lid.
•► Take the mechanical key out of the
SmartKey

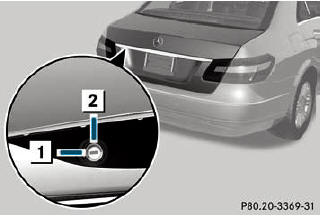

•► Insert the mechanical key into the trunk lid lock as far as the stop.
•► Turn the mechanical key clockwise from position 1 to position 2.
•► Remove the mechanical key.
•► Insert the mechanical key into the SmartKey.
See also:
Tire pressure of 180 kPa (1.8 bar/
26 psi) is reached
– Switch off the tire inflation compressor.
– Unscrew the filler hose from the valve of
the faulty tire.
After use, excess TIREFIT may run out of
the filler hose. This could cause stains.
...
Checking the oil level using the oil
dipstick
Example: vehicles with a gasoline engine
Example: vehicles with a diesel engine
– Park the vehicle on a level surface.
To check the oil level with the engine at
operating temperature, swi ...
Warning and indicator lamps
1 Low-beam headlamps
2 ESP®
3 High-beam headlamps
4 Electric parking brake (red)
(USA only)
(Canada only)
5 Electric parking brake (yellow)
6 Distance warning signal
7 Turn signal
8 Tire ...
