Changing the battery

You require a CR 2025 3 V cell battery.

•► Take the mechanical key out of the SmartKey

•► Press mechanical key 2 into the opening

•► Press mechanical key 2 into the opening in the SmartKey in the direction of the arrow until battery tray cover 1 opens.

When doing so, do not hold cover 1 shut.

•► Remove battery tray cover 1.

•► Repeatedly tap the SmartKey against your

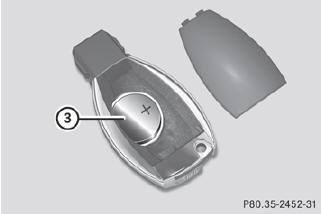

•► Repeatedly tap the SmartKey against your palm until battery 3 falls out.

•► Insert the new battery with the positive terminal facing upwards. Use a lint-free cloth to do so.

•► Make sure that the surface of the battery is free from lint, grease and all other forms of contamination.

•► Insert the front tabs of battery tray cover 1 and then press to close it.

•► Insert the mechanical key into the SmartKey.

•► Check the function of all SmartKey buttons on the vehicle.
