Tire characteristics

Tire data is vehicle-specific
and may
deviate from the data in the example.

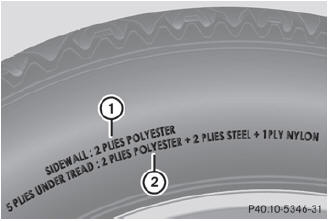

This information describes the tire cord and the number of layers in sidewall 1 and under the tread 2.
