Securing the vehicle to prevent it from rolling away

WARNING
Only jack up the vehicle on level ground or on slight inclines/declines. The vehicle could otherwise fall off the jack and injure you or others.

If your vehicle is equipped with a wheel chock, it can be found in the vehicle tool kit.

The folding wheel chock is an additional securing measure to prevent the vehicle from rolling away, for example when changing a wheel.

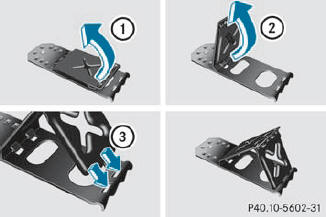

  Fold both plates upwards 1.

  Fold out lower plate 2.  Fold both plates upwards 1.
  Guide the lugs on the lower plate fully into  Fold out lower plate 2.
the openings in base plate 3.  Guide the lugs on the lower plate fully into the openings in base plate 3.

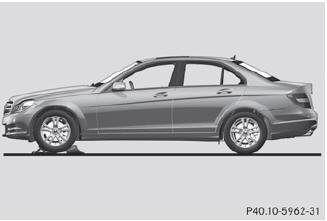

Securing the vehicle on level ground
Securing the vehicle on level ground

suitable items under the front and rear of  On level ground: place chocks or other suitable items under the front and rear of the wheel that is diagonally opposite the wheel you wish to change.

Securing the vehicle on slight downhill gradients
Securing the vehicle on slight downhill gradients

other suitable items in front of the wheels  On downhill gradients: place chocks or other suitable items in front of the wheels of the front and rear axle.
