Removing and installing the cover in the front wheel arch

You must remove the cover from the front wheel housing before you can change the front bulbs.

- To remove: switch off the lights.

- To remove: switch off the lights.
- Turn the front wheels inwards.

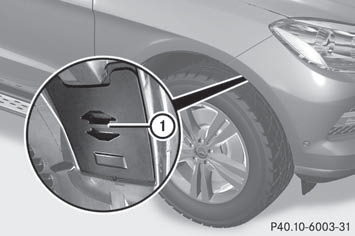

- Slide up cover 1  and lift it out.
- To install: insert cover 1 again and slide it downwards until it engages.
